Spiral Juice Extractor
The spiral juice extractor is also called screw juice extractor, which is developed by absorbing intenational advanced technology; SH JUMP spiral juice extractor is mainly used for pressing citrus and other fruit and vegetable juices. It is a low-cost multifunctional and reliable equipment. If you need to juice a variety of products, a single batch of small quantities, screw juicer is undoubtedly a very good choice. It is especially suitable for juicing fruits containing seeds and kernels, which will not destroy the seeds and kernels during the juicing process, ensuring the quality of the juice.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Device description
The spiral juice extractor is also called screw juice extractor, which is developed by absorbing intenational advanced technology; SH JUMP spiral juice extractor is mainly used for pressing citrus and other fruit and vegetable juices. It is a low-cost multifunctional and reliable equipment. If you need to juice a variety of products, a single batch of small quantities, screw juicer is undoubtedly a very good choice. It is especially suitable for juicing fruits containing seeds and kernels, which will not destroy the seeds and kernels during the juicing process, ensuring the quality of the juice.
Technical parame
| Product Name | Spiral Juice Extractor |
| Equipment Model | JPSP-1000 |
| Main material | 304 stainless steel (or according to customer requirements) |
| Processing capacity | 1 tonne/hour to 10 tonnes/hour |
| Size | 750*500*700 to 1500*800*2500(unit mm) |
| Scope of application | Suitable for pressing juice from tomato, pineapple, carrot, apple, aloe vera, cactus and other fruits and vegetables. |
Working Principle

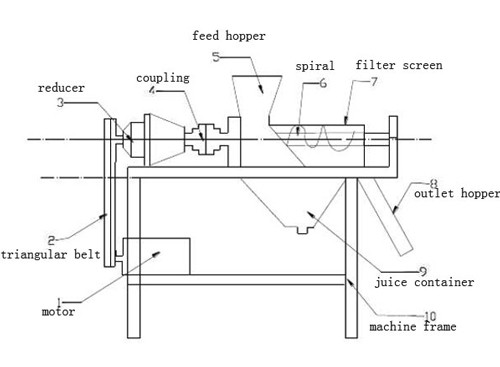

Screw Juice Extractor consists of front support, feed hopper, screw shaft, filter, juice container, rear support, slag tank and other components, the left end of the screw spindle is supported in the rolling bearing seat, the right end of the support in the handwheel bearing seat, the motor through a pair of pulleys to drive the screw shaft for operation. Screw shaft rotates clockwise along the direction of the material slag outlet, the bottom diameter gradually increased and pitch gradually reduced, when the material is propelled by the screw shaft, due to the gradual narrowing of the spiral cavity, thus forming the material of the press, fruits and vegetables added to the hopper, in the propulsion of the screw shaft and extrusion, the juice is squeezed through the sea air flows into the bottom of the juicer, and out of the clear in the screw and the regulator head of the conical part of the formation of a ring between the empty space Discharge, regulating head can adjust the size of the air risk, to adjust the discharge of the Yang force, you can change the clearing rate, regulating the size of the air pressure bucket should be processed fruits and vegetables depending on the process requirements.
Performance Characteristics
Small investment, fast cost recovery
Automation control, simple operation
Overall frame structure, good rigidity, smooth running, low vibration.
Can be single machine production, can also be integrated into the production line production
Fully automatic completion of berries, nuts and other fruits and vegetables juicing, slagging process
Improve the slag discharge part, can be suitable for pressing leafy vegetables and other high-fibre materials
FAQ
Q:How to choose a high-quality spiral juice extractor?
FAQ
Q:How to use a spiral juice extractor properly?

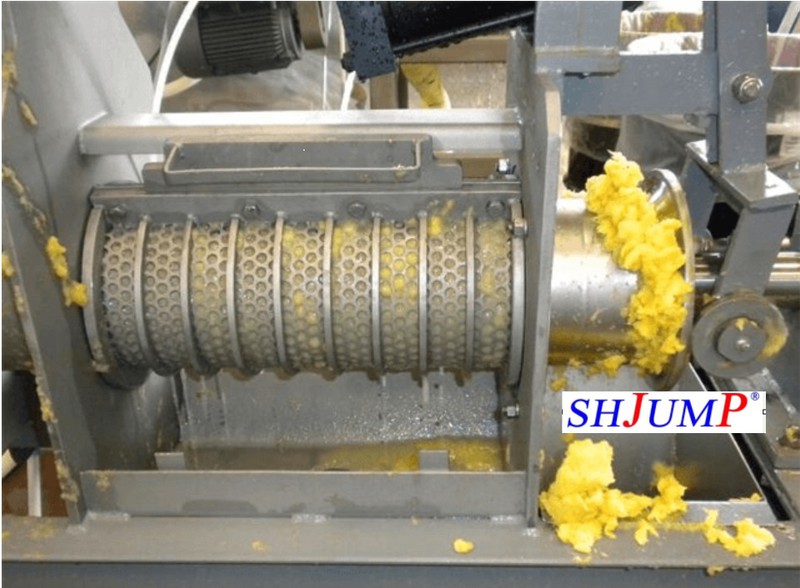

Finished product display
