Aloe Vera Processing Line

Different product prepared from Aloe vera whole leaf and gel like food products Aloe juice, Aloe health drink, Aloe desert, etc. were reviewed. Aloe vera processing methods for gel expulsion by splitting of leaf, roller method, crushing of whole leaf,hand filleting methods and stabilization are described with various references. Present processing techniques aims at producing best quality aloe products but end aloe products contain very little or virtually no active ingredients. Hence, appropriate processing techniques should be employed during processing in order to extend the use of Aloe vera gel.

Fast Delievery
Quality Assurance
24/7 Customer Service

Product Introduction

1. Aloe vera processing Project Overview:

2. Popular Aloe vera processed product:

Aloe Vera Juice:Commercial aloe juice is made by crushing or grinding entire leaves, including the latex portion

Aloe Vera Gel:Commercial aloe vera gel is made without the outer rind and aloe latex. It’s then ground into juice or kept in gel form

Aloe vera powder:dehydrated or spray dried gel. The dried gel is then ground into powder form. Use in: Food and beverages.

Aloe vera capsules:made from the whole leaf and freeze-dried into capsule form. This offers a more concentrated form of aloe vera.

3. Processing flow of Aloe vera products:

The production processes for Aloe vera products include various steps such as crushing, grinding or pressing, filtration, decolorization,stabilization, heat processing, filling etc. Following is the reference flowchart:

4.Some Aloe vera key processing machines by SHJUMP:

1	aloe vera washing machine	To remove the dirt on the aloe vera Rotary drum structure with spiral brush and spraying water to clean the aloe vera
2	air- blowing washing with elevator	1.Special design of surfing and bubbling make the aloe vera rotating continuously to separate from the wastes. 2.With elevator at the end to discharge the water and convey materials to the next process 3.antimicrobial agent can be added to remove the surface bacteria
3	Double-layer Trimming platform	Used to manually trim the edge, tops and butts of the aloe vera Upper layer for aloe vera convey, lower layer for waste convey
4	Mechanical filleting machine	the leaf (upper surface facing downwards) is passed over a blade mounted on a table. The upper rind is cut away in one swift movement. The exposed gel surface is then longitudinally sliced from the upper to lower surface but not completely through the lower rind surface so that the curved lower rind becomes flat. The lower rind can now be easily removed by passing it over the blade as before.
5	Fillet conveyor	Collect the fillet and convey to the next machine
6	Blanching and cooling machine	to rinse the exudate and minimize the enzymatic browning;Then flashy cool the blanched the fillet to reduce the loss of biological activity
7	crushing machine	Used for crushing materials. with several advantages as compact structure,energy saving,high production capacity, wide range of applications etc. The machine is made of high quality stainless steel, in line with food hygiene standard, can be used individually or connected in a processing line.
8	double- stage pulper and refiner	To get refined gel and separate the other waste The gel will go through the sieves under high-rotating force and the wastes(fibers) will be discharged

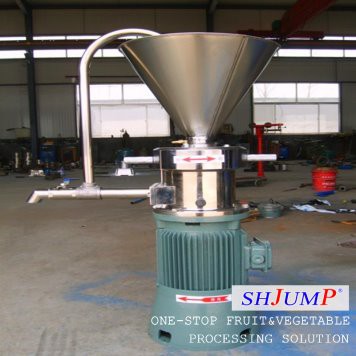

9	Grinding machine	to reduce the particle size of the aloe vera gel.A high-speed rotor pushes the fluid through small holes.The sizes of these holes or gaps is adjustable, so that the user can control the level of shear. The higher the shear, the smaller the resulting particle size.
10	Tubular sterilizer	Capacity:1T/H Suitable for sterilizing and cooling fruit juice, puree, jam etc.Consisted of product receiving tank,superheated water tank,pumps,product dual filter,tubular superheated water generate system, heat exchanger,PLC control system,control cabinet,steam inlet system,valves and sensors,etc.
11	Aseptic filling machine	Applicable to aluminum foil （Bag-in-drum&Bag-in-box）compound aseptic bag from 5L-220L. The Aseptically packed aloe vera products can keep in room temp. for 12 months.
12	Aloe vera Concentration machine	The gels obtained using the pasteurization and flash-cooling methods can be concentrated under vacuum without the loss of biological activity
13	Aloe vera Drying machine	Gel fillets can be directly dried by dehydration under a low heat. However, gel liquid is mostly dried either by spray drying or freeze drying. Freeze-drying involves placing frozen gel under a high vacuum. Water sublimes from the frozen gel as it gradually heats. Spray drying involves pumping the gel through a spray dryer chamber. Fluid is sprayed as a fine mist out a series of nozzles through this chamber.
14	controlling system	Control cabinet for the machine Intelligent process-control, simple to operate The cabinet includes basic function such as overload, short circuit, phase loss protection and other functions.
