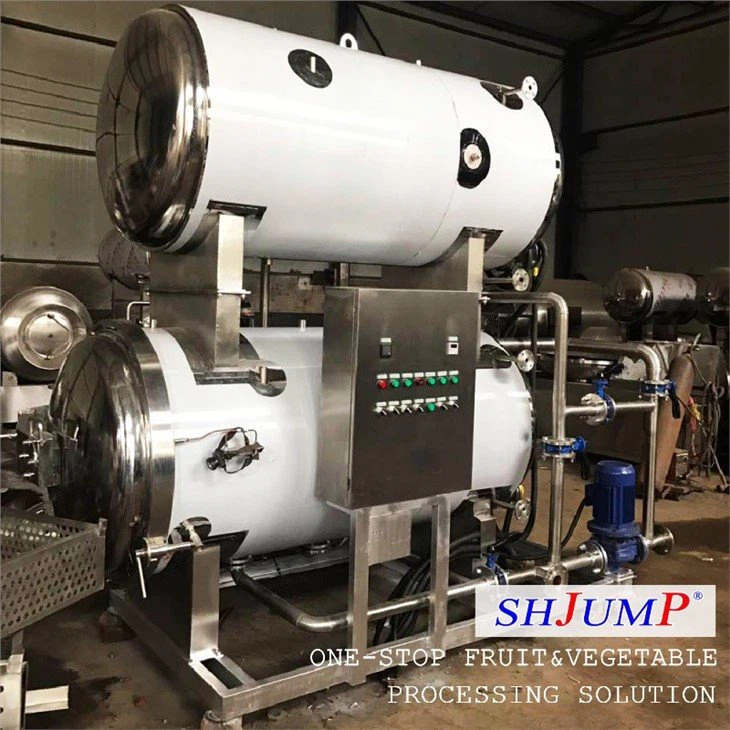

Water Spray Retort Autoclave
Save energy, increase production. In the sterilization process used in the working medium can be recycled, saving energy, time and manpower, material consumption, reduced production cost. Two sets of retorts work at the same time with one water tank, can improve one time productivity than the double-layers retort.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Production Description:
An water spray retort autoclave is a pressure chamber used to carry out industrial processes requiring elevated temperature and pressure different from ambient air pressure. The autoclave is designed for cooking, sterilization and pasteurization of food in containers using a temperature probe placed on a product sample. This allows a perfect control of the entire process while preserving the products’ properties and minimizing possible changes in the nutritional characteristics of the final product.
Working site
Working Principle:
Steam is directly injected in the bottom of the retort for fast and uniform come-up. Water sprays running over the entire shell length intensely mix the steam and water and create a homogeneous temperature distribution that results in a uniform process throughout the retort. Indirect, sterile cooling via a plate heat exchanger saves water and eliminates the need for water treatment chemicals.
Technical Parameters:
Products name | Water Spray Retort Autoclave |
Working method | Spray retort, water bath retort, steam retort or rotary retort. |
Heating source | Steam heat retort or electric heat retort. |
Structure | single-deck retort, double-deck retort, two-pot parallel retort or three-pot parallel retort. |
Cages loading and unloding | A wide range varies from manually operated packing supports to fully automated plants--conveying shuttles. |
Design Pressure: | 0.44Mpa/0.35Mpa |
Working Pressure | 0.2 ~0.3Mpa |
Max working Temperature | 147℃ |
Power | 36-48kw |
Usage | Suitable for high temperature sterilization of dairy products, baby food,convenience foods etc.For example, - Meat : hamburger , roast meat ,simmered egg ,biltong - Sauce: chilli sauce,ketch up,fruit sauce,soup ,pickles, hotpot condiment - Seafood: ribbonfish ,sardine ,shrimp sauce ,salmon fishery - Beverage :milk ,peanuts milk,almond juice,coconut milk - Congee :rice-meat ,sesame, lotus nuts,peanuts ,soybean - Vegetable: cucumber ,fruit salad,bamboo shoot |
Package Application | Packaging Container: PP bottles, HDPE bottles Glass Container: glass jar, glass can Metal Containers: tin cans Aluminum cans plastic containers Soft bag packaging: aluminum foil bag, transparent bag, vacuum bag, cooking bag and so on |
Details
Features
1. High temperature short time sterilization. Prior to sterilier retort water heated to the required temperature, thereby shortening the time of sterilizing, improve work efficiency.
2. Water spray retort autoclave can save energy and increase production. In the sterilization process used in the working medium can be recycled, saving energy, time and manpower, material consumption, reduced production cost. Two sets of retorts work at the same time with one water tank, can improve one time productivity than the double-layers retort.
3. For flexible packing products, especially the big packing, heat penetration speed, good sterilization effect.
4. Heat distribution uniform, easy control the product quality.

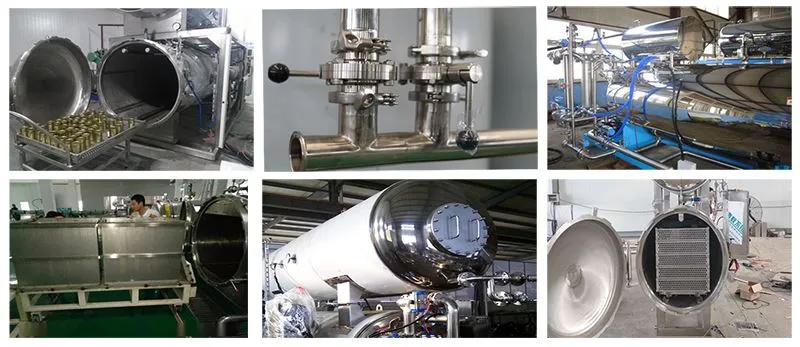

Pictures
