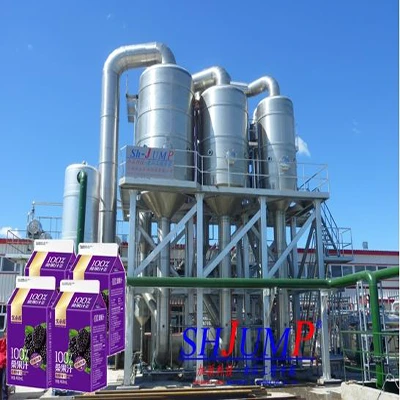

Mulberry Juice Production Line

Mulberry juice production line equipment is specially designed for mulberries and other berries (such as blueberries, strawberries, blackberries, etc.), and can produce clear juice, cloudy juice, concentrated juice, jam and mixed beverages. This production line is made of food-grade 304/316 stainless steel and complies with GMP hygiene standards. It is suitable for small and medium-sized experiments and industrial production needs.

✔Low juice yield → Patented airbag pressing technology (juice yield over 80%)
✔ Color oxidation → low-temperature enzyme inactivation + nitrogen protection process
✔ Difficult equipment cleaning → Full pipeline CIP online cleaning system
✔ Small-batch trial production is difficult → micro test units are provided

1.Raw material pretreatment
- Cleaning system: Bubble cleaning machine + spray device to remove impurities and ensure the cleanliness of raw materials.
- Fruit inspection and crushing: After manual sorting, a bag juicer or a belt juicer is selected based on the processing capacity, with a juice yield as high as 80%.

2. Juicing and enzymatic hydrolysis
- Preheating and enzyme inactivation: Inactivate oxidase, protect color and flavor.
- Enzymatic filtration: Use a horizontal screw separator or ultrafiltration system to obtain clear juice.

3. Blending and sterilization
- Homogenization and degassing: Enhance taste and prevent oxidation.
- UHT sterilization: Instantaneous high-temperature sterilization (120℃ to 135℃), preserving flavor.

4. Filling and packaging
- Fully automatic filling machine: Supports various packaging forms such as PET bottles, glass bottles, and sterile large bags, ensuring filling accuracy to the greatest extent.
- Labeling and palletizing: Automated completion of finished product packaging.

• Flexible customization: The production capacity covers 0.5 tons/day to 20 tons/day, and the process can be adjusted according to demand (such as concentrated juice 65~72Brix).
• Automation control: PLC system (Siemens) + CIP cleaning, one-click operation, reducing labor costs.
• Energy conservation and environmental protection: Steam heat recovery design reduces energy consumption.
• Multi-purpose compatibility: Compatible with mulberries, blueberries and other berries, supporting both fresh and frozen fruit processing.

• 48-hour solution response
• On-site installation and commissioning + operation certification training, and provide factory planning, equipment installation, operation training and English/Chinese manuals.
• Key components are EU certified, with a one-year after-sales warranty and 24-hour technical support.

 If you have any related questions and would like to consult us, please feel free to contact us at any time!
