Industrial Juice Extractor Selection Guide: Match Your Process, Choose the Right Core Equipment
Mar 27, 2026
In the field of fruit and vegetable deep processing, juice extraction is a critical step that determines product flavor, yield, and cost. Given the wide variety of raw materials and end-product requirements, selecting a juice extractor that perfectly aligns with your process is the foundation of building an efficient and economical production line. As an engineering solutions provider with decades of experience in food processing, Shanghai Jiapai Machinery Technology Co., Ltd. not only offers high-performance individual units but also specializes in designing customized complete production lines-from raw material pretreatment to filling. This guide provides a systematic analysis of the working principles and application scenarios of mainstream industrial juice extractors, with a focus on our proven models validated through numerous successful projects.
Core Classification and Selection Logic for Industrial Juice Extractors
The selection of an industrial juice extractor depends primarily on the characteristics of the raw material and the final product form. Based on their operating principle, they can be divided into continuous and batch types, with continuous extractors being the overwhelming choice for large-scale production.
FMC Cup-Type Juice Extractor (Industry Premium Standard)
Working Principle: Adopting German technology, a food-grade bladder is inflated to apply uniform, gentle hydrostatic pressure from all sides within a tank, achieving solid-liquid separation.
Core Application: Particularly suitable for grapes (including ice grapes), pomegranates, Phyllanthus emblica, blueberries, and other berries, as well as fruits like pineapples that require gentle pressing to preserve flavor and color. Also effective for pressing fermented grape pomace.
Product Focus: Used to produce high-quality juice with clear color and controlled extraction of tannins and phenolic compounds, making it ideal for premium fruit wine base juice and specialty fruit juices.
Our Project Reference: We offer proven pneumatic press solutions. A unit with a 3 m³ processing capacity, featuring a German-origin bladder and key components, delivers high yield and thorough cleaning. It has been applied in specialty fruit processing projects, such as for mangoes and grapes.

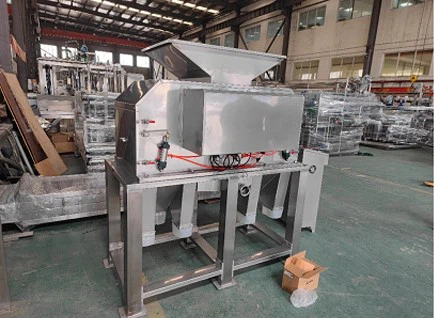

Citrus Section Crusher & Juice Extractor (Continuous)
Working Principle: Whole or halved fruits are fed in. The equipment automatically separates the fruit segments, squeezes out the juice, and achieves automatic separation of juice, pulp, and peel residues.
Core Application: Designed for citrus fruits (oranges, mandarins, grapefruit, lemons, pineapples) and other tropical fruits requiring segmentation.
Product Focus: A cost-effective choice for producing high-quality NFC citrus juice or concentrated citrus juice, featuring optimized design to effectively control bitterness.
Our Project Reference: This model served as the core extraction unit in projects such as a 10-ton/hour pineapple and citrus juice line in Uganda and multiple 3-ton/hour NFC orange juice lines in various regions of China.
Belt Press (Continuous)
Working Principle: Crushed fruit pulp is evenly spread between two circulating filter belts. It is then subjected to multi-stage progressive squeezing through a series of decreasing-diameter rollers, achieving solid-liquid separation.
Core Application: Suitable for crushed pulpy materials such as apples, pears, grapes, berries (e.g., blueberries, mulberries), and ginger.
Product Focus: Ideal for processing large volumes of fruit to produce clear juice or concentrate, offering high juice yield and dry pomace.
Our Project Reference: Widely used in applications like the 20-ton/hour plum processing line in Jiangxi, China, the 5-ton/hour apple-pear blend line in Northern China, and as the initial extraction step in tomato paste production lines in Xinjiang, Inner Mongolia, and elsewhere.

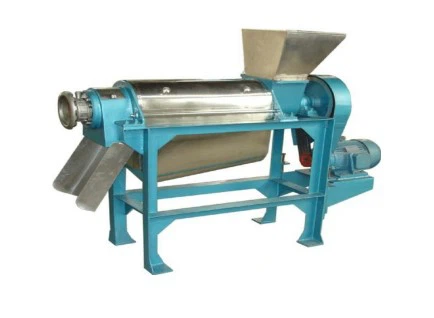

Screw / Twin-Screw Juice Extractor (Continuous)
Working Principle: A screw shaft rotates within a screen, creating both axial conveyance and radial compression of the material. Juice is expelled through the screen, while the pomace is discharged at the end.
Core Application: Highly versatile, capable of handling crushed pulps of various fruits and vegetables, especially high-fiber, high-viscosity materials like mangoes, carrots, and kiwifruit.
Product Focus: Commonly used for producing fruit pulp or nectar-style juices, or as a secondary extraction unit to increase overall yield.
Our Project Reference: Used as a secondary extraction option in a 10-ton/hour composite fruit and vegetable line in China, and also deployed in small-scale fruit pulp pilot lines and specific product lines for Southeast Asian clients.
.
Pneumatic Press (Batch Type)
Working Principle: Adopting German technology, a food-grade bladder is inflated to apply uniform, gentle hydrostatic pressure from all sides within a tank, achieving solid-liquid separation.
Core Application: Particularly suitable for grapes (including ice grapes), pomegranates, Phyllanthus emblica, blueberries, and other berries, as well as fruits like pineapples that require gentle pressing to preserve flavor and color. Also effective for pressing fermented grape pomace.
Product Focus: Used to produce high-quality juice with clear color and controlled extraction of tannins and phenolic compounds, making it ideal for premium fruit wine base juice and specialty fruit juices.
Our Project Reference: We offer proven pneumatic press solutions. A unit with a 3 m³ processing capacity, featuring a German-origin bladder and key components, delivers high yield and thorough cleaning. It has been applied in specialty fruit processing projects, such as for mangoes and grapes.

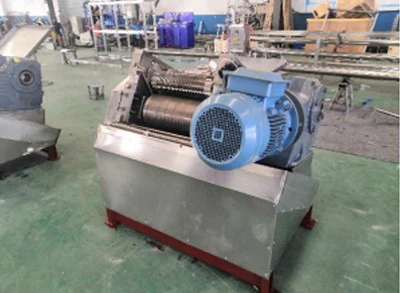

Sugar Cane Mill (Continuous)
Working Principle: Utilizes multiple sets of high-strength pressing rollers to continuously and progressively crush prepared sugar cane (e.g., shredded, broken), efficiently extracting the juice.
Core Application: Specifically designed for sugar cane, serving as the core front-end equipment for sugar production, sugar cane juice beverages, and sugar cane concentrate.
Product Focus: Produces primary cane juice, which can be filtered, clarified, and sterilized for ready-to-drink products, or concentrated into cane juice concentrate or syrup.
Our Project Reference: We have mature technology for sugar cane juice production lines, successfully delivering a project for deep-processing sugar cane juice in Australia. We provide complete solutions from cane preparation and milling to subsequent refining.

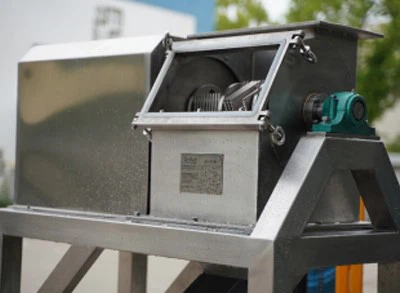

Crusher (Essential Pretreatment for Juice Extraction)
Working Principle: Uses a flying knife/hammer mill structure to break whole fruits or blocky materials into uniform small particles within an enclosed environment, significantly increasing juice yield and efficiency in subsequent extraction or pulping.
Core Application: A necessary pretreatment step for all fruit and vegetable materials intended for juice extraction or pulping, such as apples, pears, carrots, tomatoes, and various tropical fruits.
Product Focus: Provides a uniformly sized pulp for the juice extractor, ensuring overall line yield and capacity.
Our Project Reference: Our JPM-PSJ series crushers, with capacities ranging from 0.3 to 10 tons/hour, are constructed entirely from SUS304 stainless steel and feature variable frequency drives. They are widely integrated into various juice and pulp production lines, including the 5-ton/hour apple-pear NFC line and the 10-ton/hour composite fruit and vegetable line.
Detailed Overview of Our Core Models: Proven in Practice
Our equipment solutions are built on the practical experience gained from hundreds of successful projects, ensuring that what we recommend is not just a standalone machine but a solution seamlessly integrated with your entire process chain.
Citrus Section Crusher & Juice Extractor – Cost-Effective Expert for Citrus Processing
Designed specifically for the physical properties of citrus fruits, it efficiently separates segments, extracts juice, and minimizes peel influence through optimized pressing zones to preserve flavor.
Features automated continuous feeding and discharge, with capacities covering 1–10 tons/hour, suitable for small to large-scale operations.
All contact parts are made of SUS304 stainless steel, with key components treated for wear resistance, ensuring reliability in continuous operations and easy maintenance.
A client in Uganda planned a 10-ton/hour mixed juice line for pineapples, oranges, and lemons. Our solution centered around this extractor, integrated with a pretreatment washing line, followed by pulp conveying, refining, and control systems, delivering a complete turnkey production line.
Belt Press – Efficiency Engine for Large-Scale Production
Multi-stage progressive pressing maximizes juice extraction and reduces pomace moisture content, directly improving raw material utilization and economic returns.
Designed for capacities from 5 to 50 tons/hour, supporting 24/7 continuous operation, making it ideal for processing large volumes of apples, grapes, and similar fruits.
Easily integrates with upstream crushers and downstream pumps and pomace handling systems for fully automated line control.
A major processing company in Jiangxi, China, required a 20-ton/hour plum processing line for juice extraction, demanding high yield and stable operation. Our belt press solution, combined with a pre-processing system and control system, perfectly met their large-scale, high-efficiency production needs.
Pneumatic Press – Gentle Extraction Specialist for Berries & Specialty Fruits
Multi-stage progressive pressing maximizes juice extraction and reduces pomace moisture content, directly improving raw material utilization and economic returns.
Designed for capacities from 5 to 50 tons/hour, supporting 24/7 continuous operation, making it ideal for processing large volumes of apples, grapes, and similar fruits.
Easily integrates with upstream crushers and downstream pumps and pomace handling systems for fully automated line control.
A major processing company in Jiangxi, China, required a 20-ton/hour plum processing line for juice extraction, demanding high yield and stable operation. Our belt press solution, combined with a pre-processing system and control system, perfectly met their large-scale, high-efficiency production needs.
Screw / Twin-Screw Juice Extractor – Flexible Choice for Diverse Materials
By adjusting screw shaft parameters and screen mesh sizes, it can handle various materials, from berries to root vegetables, enabling multi-product capability.
Occupies minimal space, ideal for processing plants with limited floor space or those processing a diverse range of products.
Easy Maintenance: Features easily removable screens for quick cleaning and component replacement.
Features easily removable screens for quick cleaning and component replacement.
A client in Southeast Asia with a diversified processing facility needed to handle various tropical fruits like mangoes and dragon fruit to produce fruit pulp and puree, with a capacity requirement of 1–3 tons/hour. Our recommended screw extractor, valued for its versatility and compact design, became their core processing unit, complemented by refining and aseptic filling systems.
Pneumatic Press – Gentle Extraction Specialist for Berries & Specialty Fruits
Core Advantages:
Gentle Pressing: The hydrostatic pressure from the bladder avoids the mechanical crushing of seeds, effectively reducing the extraction of bitter tannins-particularly important for wine-grade juice.
Clear Juice: The gentle pressing process results in lower solid content, yielding juice with superior color and clarity.
Specialized Application: Ideal for pressing fermented pomace (e.g., wine lees) and small berries, achieving both high yield and quality.
Typical Project Profile: Clients aiming to produce high-end pomegranate juice or ice wine base juice, with strict requirements for color, purity of taste, and phenolic compound content, find our pneumatic press solution perfectly suited for such gentle and controlled pressing needs.
The hydrostatic pressure from the bladder avoids the mechanical crushing of seeds, effectively reducing the extraction of bitter tannins-particularly important for wine-grade juice.
The gentle pressing process results in lower solid content, yielding juice with superior color and clarity.
Ideal for pressing fermented pomace (e.g., wine lees) and small berries, achieving both high yield and quality.
Clients aiming to produce high-end pomegranate juice or ice wine base juice, with strict requirements for color, purity of taste, and phenolic compound content, find our pneumatic press solution perfectly suited for such gentle and controlled pressing needs.
Sugar Cane Mill – Core Power for Sugar Cane Deep Processing
Designed for the high-fiber nature of sugar cane, with optimized roller configurations and pressures for high juice extraction and dry bagasse, maximizing sugar yield.
Enables continuous feeding and milling, offering high capacity and smooth operation suitable for industrial-scale production.
Complete Integration: We provide a full suite of equipment for the cane preparation and milling section, ensuring seamless integration with subsequent clarification and evaporation/concentration processes.
We provide a full suite of equipment for the cane preparation and milling section, ensuring seamless integration with subsequent clarification and evaporation/concentration processes.
An Australian client planned to build a production line for fresh sugar cane juice beverages and concentrate. Our solution featured the sugar cane mill as the core, supported by efficient de-sanding and filtration systems, followed by UHT sterilization and aseptic filling, successfully achieving industrial-scale production of high-quality sugar cane juice.
Selection Decision Flowchart: Three Steps to Find Your "Best Match"
To assist in your decision-making, we have outlined the following selection pathway:
Important Note: Regardless of the juice extractor selected, a crusher is an essential front-end piece of equipment to prepare the raw material into an optimal state for pressing.
Beyond Standalone Machines: Choose Jiapai for a Complete Process Solution
When you choose Shanghai Jiapai, you receive more than just a juice extractor. Leveraging our deep process knowledge in areas like tomato paste, fruit juice concentrate, fruit pulp, and NFC juices, we provide:
• Process Design: Optimized process flow tailored to your raw materials and product goals.
Equipment Integration: A complete suite of equipment from washing, sorting, crushing, and extraction to subsequent refining, concentration, sterilization, and filling. While we specialize in our own proven models, we can also integrate industry-leading equipment, such as FMC cup-type extractors, based on your specific needs and budget to create the optimal configuration.
• Core Technical Support: Including integration of critical systems like aroma recovery and efficient evaporation/concentration to maximize product flavor and economic returns.
• Global Project Experience: Our equipment and services have been deployed across fruit and vegetable processing regions in China, Southeast Asia, Africa, and Europe, providing deep insight into diverse production requirements and standards.
• Contact Us Today: Provide us with your raw material types, target products, market positioning, and expected capacity. Our food engineering experts will develop a customized feasibility plan and equipment list for you.
Shanghai Jiapai Machinery Technology Co., Ltd.
Food Engineering Experts | Complete Line Solution Provider
Website: www.sinojump.com
Note: The equipment parameters and project cases referenced in this document are derived from our actual historical project proposals and industry technical expertise.
