Quick Frozen Fruit Processing Line
Superior fluidized IQF function by extra belt hitting system together with the adjustable high pressure centrifugal blower to generate vertical air flows which keep the materials in a fluidized condition during the freezing process.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
PRODUCT INTRODUCTION:
When fruit is frozen, it is picked at the peak of ripeness and flash-frozen soon after to preserve the optimal nutrition benefits. Frozen fruit often lasts several months and may be more economical than buying fresh fruit that goes bad quicker. With frozen fruit, you can take out as many pieces as you need and leave the rest for next time.
Frozen fruit is also beneficial because it is already prepped for you. It usually comes cleaned and presliced for your convenience. This may save you time when making dishes that contain fruit.
Similarly, frozen fruit is great for adding to yogurt and smoothies. Just grab a handful of strawberry slices, for example, and toss them into your bowl of yogurt or your blender and enjoy your snack. If fruits you love to include in these dishes are out of season, they may still be available frozen.
Flowchart:
Pretreatment (Picking,sorting, cutting, peeling, slicing) → Bubble cleaning → Screw blanching or Net-belt blanching → Precooling in water → Ice water cooling → Vibration water Dropping → Quick-freezing
Application:
Our quick frozen fruit processing line suits for apple dice, mango cube, dragon fruits, strawberry, cherry, beans, peas, maize grain, asparagus, common calla, taro, mushroom, cauliflower, lotus root, onion, etc.
Key machines to make frozen fruits:
No. | Machine name | Machine description |
1 | Selecting conveyor | Pick out the bad one after washing |
2 | Washer | Clean out the products |
3 | Blancher | Cook and sterilize the vegetable |
4 | Lukewarm and ice water cooler | Clean and cool the boiled vegetable |
5 | Vibration water dropper | Remove the water stick on the surface of the products |
6 | Elevator | Transfer the products into the IQF freezer |
7 | Vibration feeder | Prevent the vegetable from gathering when being transferred into the IQF freezer |
8 | IQF Freezer | Freeze the vegetables quickly |
9 | Cold room | Preserve the frozen vegetables |

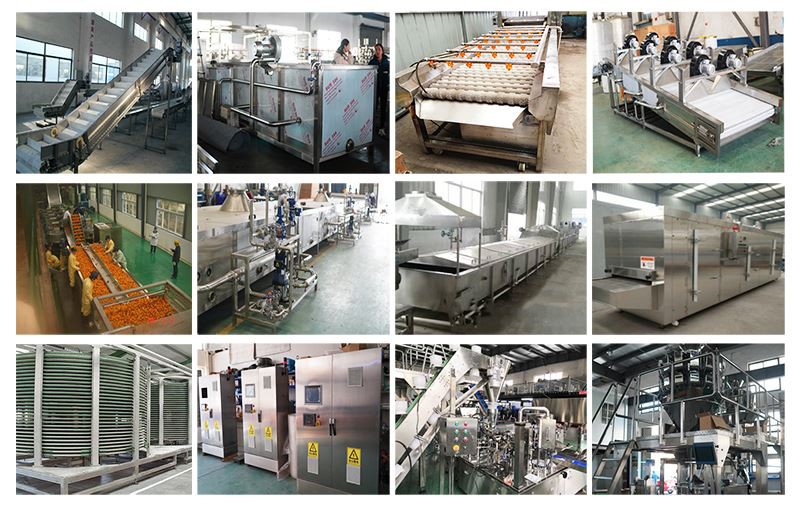

Our machine pictures:
Advantages of our quick frozen fruit processing line:
1) Suitable for fluidized IQF frozen processing for green peas or fruits and vegetables slices, dices etc.
2) Frequency converters for belt conveying and also fan blowers which assure flexibility during the production even with the most difficult products.
3) Extraordinary freezing efficiency is guaranteed by the extremely efficient evaporator, optimized design and quality finishing.
4) Easy access to all freezer parts, easy handling of maintenance and cleaning operations.
5) Stainless steel wire mesh belt, which is the most reliable solution by now, proven performance by users, and universal solution for easier replacement and maintenance all over the world.
6) Superior fluidized IQF function by extra belt hitting system together with the adjustable high pressure centrifugal blower to generate vertical air flows which keep the materials in a fluidized condition during the freezing process.
7) With our high quality stainless steel belt and on position cleaning device for the belt, we can bring the highest sanitation level and easy work for cleaning of our freezer.

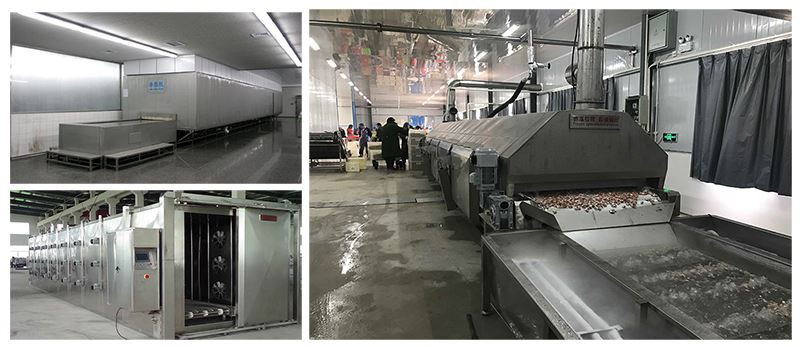

Our history project site:
