Rotary Filling Machine
This rotary filling machine is used for the production of juice, jam and dairy products in PET bottles, glass bottles, tinplate cans, Aluminum cans, etc.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
General description:
This rotary filling machine is used for the production of juice, jam and dairy products in PET bottles, glass bottles, tinplate cans, Aluminum cans, etc. It is mono-bloc that can realize bottle rinsing, product filling and capping on one machine.

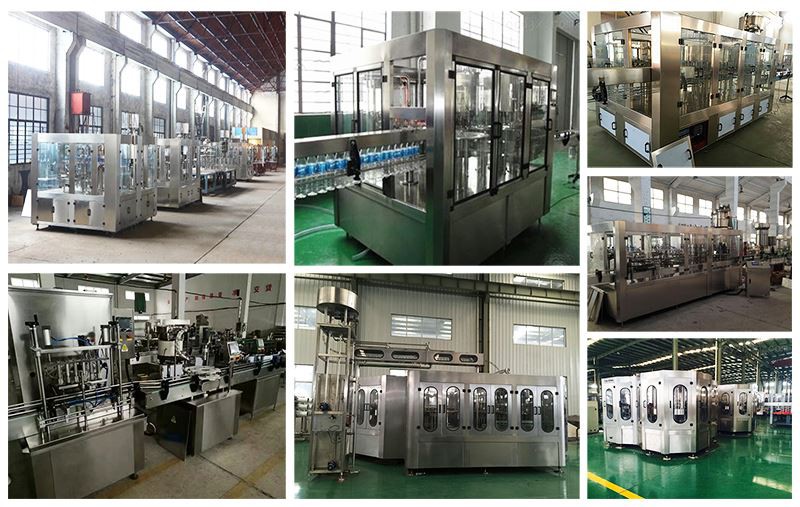

Working site:
Detailed information:
1. Washing Parts.
All 304/316 stainless steel rinse heads, water spray style inject design, less water consumption and cleaner.
304/316 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing.
304/316 stainless steel washing pump make the machine more durable.
2. Filling Parts.
304/316 Stainless steel high precision filling nozzle
Filling volume adjustable in fine rank, same liquid level after filling
All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
304/316 stainless steel filling pump
Efficient spray nozzle rinse thoroughly and save water for flushing
3. Capping Parts.
Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304/316 stainless steel construction
No bottle no capping
Automatic stop when lack of bottle
Capping effect is stable and reliable, Defective rate ≤0.2%

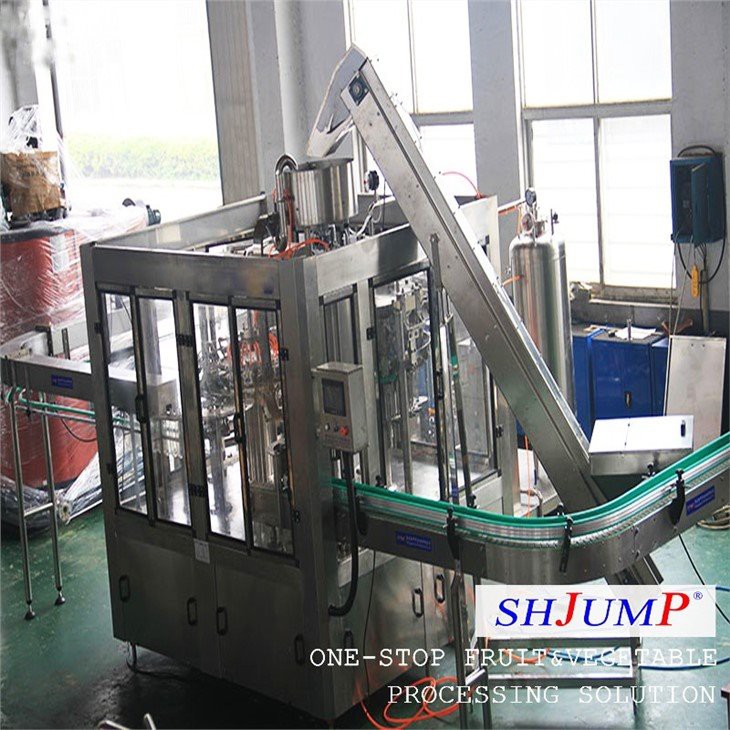

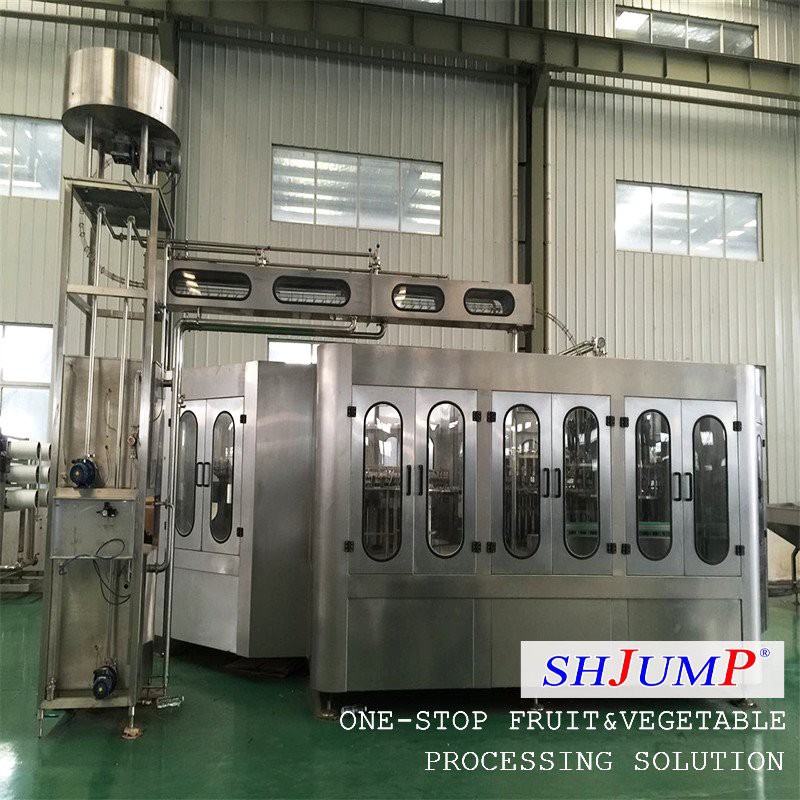

Detailed pictures:
Technical Parameter:
Model | JP-CGF 12-12-5 | JP-CGF 18-18-6 | JP-CGF 24-24-8 | JP-CGF 32-32-10 | JP-CGF 40-40-12 | JP-CGF 50-50-15 |
Capacity（BPH） | 3000 | 5000 | 8000-10000 | 10000-12000 | 13000-15000 | 16000-18000 |
Bottle applied | Bottle neck Φ50-Φ100mm；Bottle height 150-320mm；Volume330-1500ml | |||||
Compressed air(m³/min) | 0.2 | 0.4 | 0.4 | 0.5 | 0.55 | 0.6 |
Power(kw) | 4.6 | 5.4 | 6.4 | 8.07 | 9.56 | 11 |
Weight(kg) | 2500 | 3800 | 5200 | 6500 | 8000 | 11200 |
Dimension（mm) | 2350*1700*2150 | 3220*2300*2600 | 3220*2300*2600 | 3450*2510*2710 | 3800*2800*2710 | 4510*3400*2900 |
Features
1. Bottle is entered by air conveyor, the speed of bottle entering is fast and bottle shape is not changed because of adopting hanging clamping bottleneck way.
2. Rotary Filling Machine adopts clamping bottleneck way to wash bottle mouth and avoid touch screw mouth. It adopts clamping bottleneck way in the whole conveying process. When bottle type changes, you need to change the board related with bottle diameter.
3. Filling adopts cylinder feeding structure, filling valve adopts high filling speed and mass flow rate valve which control liquids level accurately and without loss.
4. The capping system applies advanced French technology, when clamp the cap will screw immediately and magnetic torque type capping head.
5. Main PLC and frequency changer are used famous brand, such as Mitsubishi and Schneider etc.
Demonstration
