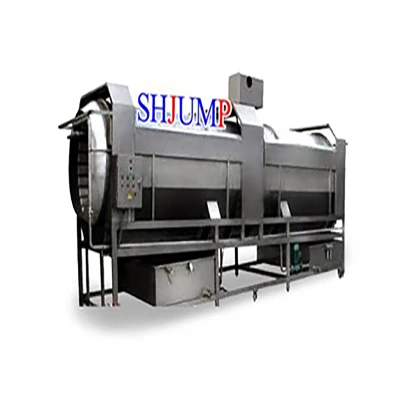

Rotary Drum Washer
Rotary drum washer is composed of frame, waterproof cover, cleaning roller, high-pressure spray device, collecting water tank, transmission device and so on. Used for vegetables, aquatic products, jujube, jujube cleaning, and can be used for carrots, apples, potatoes, potatoes and other cleaning, more suitable for growing in the soil of fruits and vegetables, high cleanliness, can maintain the original color.
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
working principle
The working principle of Material Rotary drum washer is that after entering cleaning roller, due to the role of spiral vane, make the material in roll forward, high pressure spray device form containing bubble cleaning water, cleaning water column are washed surfaces, the high speed impact energies of bubble burst when in contact with the object, the impact of the material surface and scrub, and move forward to the hair roller, In this roller can thoroughly and cleanly remove the hair of the material, to solve the difficult problem of the food production industry. After the material through the roller, into the rotary cage part, in this by the rotary cage to remove floating in the water debris, insects, etc. in this material into the conveyor belt, the spray head will finally clean the material, into the next production process.
technical specification
| Main material food grade stainless steel plate SUS304(or according to customer requirements) |
| The processing capacity ranges from 0.5 t/h to 10 th Dimensions: 1800*1000*1600 to 4500*1300*2800 (unit mm) |
| The equipment is suitable for cleaning fruit and vegetable raw materials |
| Carrots, apples, potatoes, potatoes, vegetables, aquatic products, red dates, dates and so on |
Features
- Change the hardness of the brush, can be used for raw material peeling process.
- Brush roller design adopts the principle of planetary rotation.
- The discharge is controlled by the plate valve.
- The roller of the brush rotates 360 degrees.
Finished product display
