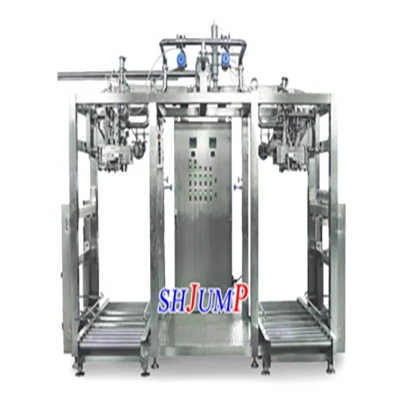

Aseptic Filling Machine

Aseptic filling machine mainly consists of aseptic filling head, operating system, man-machine control system, steam protection system, metering system and workbench, etc., with an independent control cabinet and simple button box, touch screen and programmable controller (PLC) using Germany Siemens, solenoid valves and cylinders using Yadebridge, switch buttons using Schneider; metering system using the Sinew Electromagnetic flowmeter, the use of aluminum-plastic composite aseptic bag (5L-220L).
The aseptic  filling machine uses steam jet method to sterilize the bag mouth and filling chamber to ensure that the filling chamber is always in a sterile state, the aseptic bag mouth sterilization, opening, filling and sealing are completed in a sterile environment. Double-head filling machine filling time is two filling head switch filling, filling material zero reflux (such as head one in the filling at the same time, the head two do bagging action, bagging completed after the completion of the jet steam on the bag mouth sterilization, to be the head of the end of the first filling, the aseptic valve switches to the head of the second filling), the equipment comes with a CIP cleaning, SIP sterilization action process, can be realized with the front-end sterilization machine linkage, no need for separate cleaning and sterilization.

•  Aseptic filling of juices and purees: After processing, juices and purees need to be filled aseptically to prevent microbial contamination and extend shelf life. Aseptic filling machines ensure that juices and purees do not come into contact with airborne microorganisms during the filling process, preserving the product's original flavor and nutritional content.
• Filling of fruit and vegetable pastes and jams: These products contain high moisture and nutrients, making them susceptible to microbial contamination. Aseptic filling machines provide a sterile environment to ensure product safety and quality.
• Canned fruit and vegetable juice beverages: For mixed drinks and functional beverages, using aseptic filling machines ensures that they are not contaminated during production and packaging, meeting consumer demand for high-quality, healthy products.



• Made of food grade SUS 304 high quality stainless steel.
• Liftable filling head with automatic lifting according to weight setting.
• Equipped with two sets of control system, manual and automatic.
• Unique design of filling chamber to avoid condensation dripping.
• Upgraded on the basis of Italian equipment, in which the double-head aseptic filling machine can be continuously filled; in-line control with sterilizer to realize CIP and SIP.
• Human-machine interface control, real-time weight display and control, weight measurement deviation within 1%.
• Product valves and moving parts of filling head are protected by steam barrier, and the filling chamber is sterilized by steam.
• Independent control cabinet, PLC+touch screen man-machine interface fully automatic control system.
