UHT Tubular Sterilizer

1. General description:

Our UHT tubular sterilizer can sterilize fruit juice, jam, dairy or similar materials.The equipment can simultaneously complete the function of heat sterilization and cooling of the material, but also can automatically control and record some important technical parameters , such as the sterilization temperature, which not only reduces the influence of human factors on the sterilization process, but also record the normal production process.

UHT tubular sterilizer can be divided into tubular sterilizer and tube-in-tube sterilizer. Tubular sterilizer is mainly applied to materials with good fluidity, low viscosity of the material such as juice, milk and other beverages ; While tube-in-tube sterilizer with four-layer casing structure, is applied to the jam, pulp, maltodextrin and other materials with poor mobility, high viscosity.

2. working principle:

UHT Tubular sterilizer is mainly composed of steam system, material system, hot water system, cooling system and other parts. All these parts are compact, with small occupied floor and easy to transport and install.

Materials can be filled after several process of preheating, heating sterilization, cooling etc.The materials exchange heat with heat media through thin-walled tubes. Materials flow in the pipeline at a certain rate, and the heat media flow in the outer casing tube, to heat or cool down the materials.If the temperature, flow rate, pressure and other factors change, they will affect the sterilization effect. In addition, steam, cooling water or circulating water from external source, must keep stable pressure, flow rate, temperature (in terms of ice water) because these changes will affect the equipment sterilization effect.

3. Technical Parameters:

4. Equipment Characteristics:

1. Minor difference between the heating medium and material to ensure a moderate heating. The casing tube structure with mirror polishing can reduce the scaling less and increase the working hours of the sterilizer.

2. High degree of automation.Automatic control and record the entire process from the equipment CIP,SIP to whole material sterilization process.

3. Sterilization temperature control is accurate and reliable: the factors that affect the sterilization temperature, such as steam pressure, flow, material flow and so on are strictly automatic controlled.

4. The system has strong security and high reliability.All main components such as material pump, hot water pump, all kinds of valves and electrical components are world top brands. And the system designs have pressure protection measures and alarm system.

5, Equipped with SIP system.

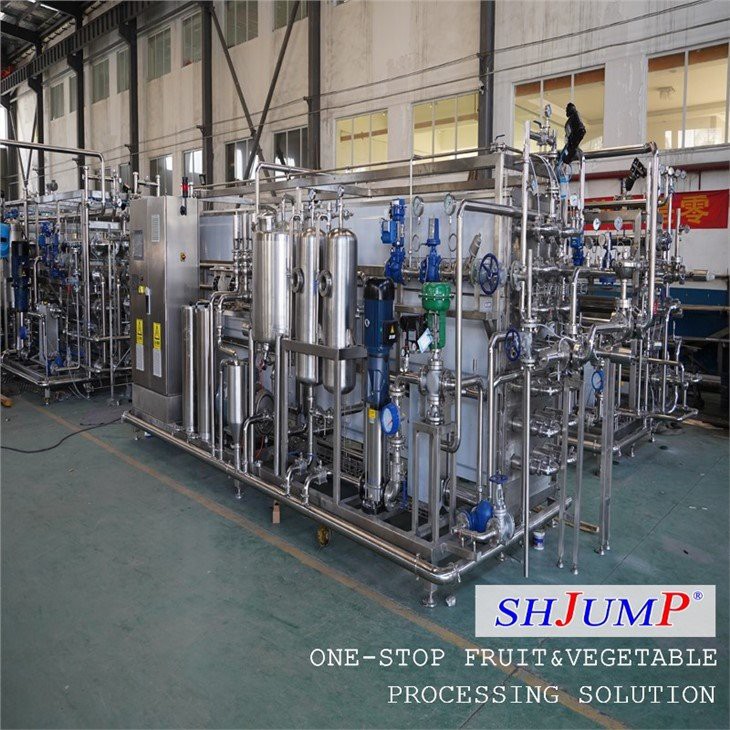

5. Pictures:

6. Configuration:

All components of our sterilizer are made of world-renowned brands with excellent and reliable performance, such as Schneider relays, Airtac cylinders, and Spirax Sarco steam valve groups, ensuring stable and continuous production time.

Brands of key parts 1
No.	1	2	3	4	5
Parts	Product balance tank and level control	Centrifugal pumps for SIP and CIP	Product screw pump or centrifugal pump	Human Machine Interface (HMI) and PLC	SUS304 independent control electric cabinet
Brands

Brands of key parts 2
No.	1	2	3	4	5
Parts	SUS304/316 Tubular heat exchanger Pipes	Pipes, valves, elbows, internal signal lines, engineering and programming	Frequency converters	Steam control valve systems	Multi-function Tanks
Brands
