Fig Puree Processing Line
1. Fig puree Processing Project Overview 2. fig puree products description Fig puree has promising market. It is suitable for the manufacture of bakery items, baby food or as a base for sauces, fig puree is a sweet and thick product which retains all the natural flavour, colour and nutritional...
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1. Fig puree Processing Project Overview
Raw material | Fresh fig |
End product | fig pure or concentrate, smoothie |
Processing capacity | From 20 T/day to 1500 T/day |
Juice Efficient input | 85% raw fruit (15% as waste),depends on different variety |
End product package | 20kg bag in box, or Drum 200kg with aseptic bags |
Product consistency | 35Brix fig puree to the food and drinks manufacturing industry or depends on customer’s needs |
Output | Can be calculated |
2. fig puree products description
Fig puree has promising market. It is suitable for the manufacture of bakery items, baby food or as a base for sauces, fig puree is a sweet and thick product which retains all the natural flavour, colour and nutritional value of the raw fruit.
Our processing line can produce fig puree in bulk. Main processing flow including heating the raw fruit, then straining the resultant mixture through a fine sieve to yield a smooth and luxurious final product.And then pasteurizing the products to get a commercially sterilized products. The products can be kept under refrigerating condition or frozen condition depending on different heating condition.
Different package for juice product:
3. Process flow for fig puree processing :
4. Key machines’ s description for fig puree processing line:
Key machines | Descriptions |
Air-blowing washing machine | Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well. Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc. |
fig nylon brushing and spraying cleaning | 1.Multi-pieces tapered brush rollers, friction the top and surface of the material at the same time.Staggered adjacent hair rollers run their own,fruits can be rotated 180 degrees.Full friction cleaning materials, no material stockpiling 2.With spray cleaning and water cycling system |
fig sorting machine | Used in the sorting and conveying of mango, tomato, guava etc. To select the defective fruit out and put them into the middle conveyor, then go to the waste conveyor. Smooth roller conveying make the fruit rotate along with the forwarding, which will generally avoid the choose negligence |
Fig crusher | The crusher is suitable for the crushing of various fruits and vegetables. It is used to crush raw materials such as fruits and vegetables into small-diameter particles to facilitate the operation and use of the next process. |
Pre-heater and enzyme deactivation machine | Used for pre-heating,deactivating enzyme and Pasteurizing of crushed products.;Adjustable temperature control and automatic return flow function. |
double-stage pulper and refiner | Big capacity and stable performance. High rotating speed with 1470 rpm. Easy to operate and change the sieves. The size of sieve can be customized |
Vacuum deaerator | Used in degassing the fig puree in vacuum to prevent the oxidization and turning brown, and remove the gas attaching on the suspended particulates.Help to improve the product looking and reduce bubbles for following steps |
Vacuum evaporator | 1. Composed of tubular heater, vacuum evaporation chamber, multi-stage condenser, pumps (product circulation pump, product input & outlet pump, vacuum pump, water pump), auto PLC control system, valves, meters & gauges, operation platform, and etc. 2.. Main structure with high quality food class stainless steel. 3. Continuous product’s automatic input and output and the final product’s Brix consistency are fully control by PLC system. |
Tubular sterilizer | 1.Heat the pulp by superheated water till the sterilizing temp and hold the product under the temp for sterilizing the product ,then cool down into filling temperature by cooling water or chilled water 2.Auto backtrack if not enough sterilization |
fig pulp aseptic filling machine | 1.Applicable to aluminum foil （Bag-in-drum&Bag-in-box）compound aseptic bag from 5L-220L. 2.Consisted of aseptic filling head,accurate electronic balance,PLC control system,steam barrier and protection system,operation platform 3.Keep the filling chamber sterilized all the time by steam protection. 4.Full auto SIP and CIP available |
5.Related machines’ pictures per fig puree processing:
6.Features of fig puree Processing Line
1.Possibility to operate several washing cycles on the raw material.Low water consumptions thanks to the water recirculation and filtration in line.
2. Possibility to adjust and homogenize the flow of raw material to the working lines.
3. The solution is studied to work in two possible process configurations, hot or cold extraction, in order to maintain high process flexibility.
4.The fresh and high quality output can be frozen, aseptically packed or HPP treated.

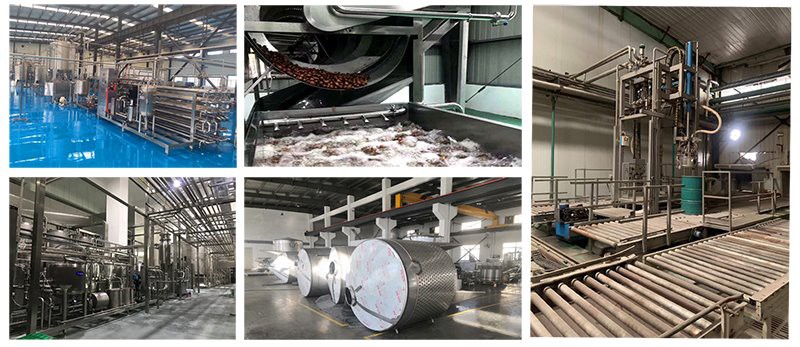

7. - History fig puree processing project site view :
